FACILITIES

PMEL’s various facilities are located in and around Chennai with unique capabilities in machining and heavy fabrication

We at PMEL are committed to total Customer satisfaction by providing timely and Qualitative Products and services of heavy fabrication & machining to our customer by continuously improving the processes and quality systems.

UNIT I

Our Facilites

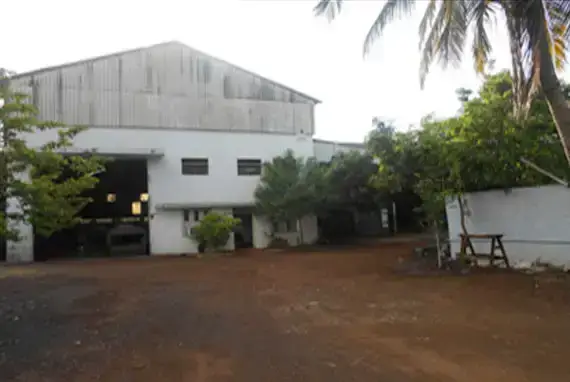

Manufacturing Facility: Unit -I

Our Unit -1 is ISO 9001: 2015 Certified Organization which is located at
Established : 1990
Address : No.9A, Mahatma Gandhi Road, N.S.C Bose Nagar, Poothapedu, Porur, Chennai 600116.
Total area : 4,688 sq.mtr
Covered Area for Machine Shop : 1,923 Sq. Mtr
Covered Area for Fabrication Shop : 1,402 Sq.mtr

Machinery

UNIT I

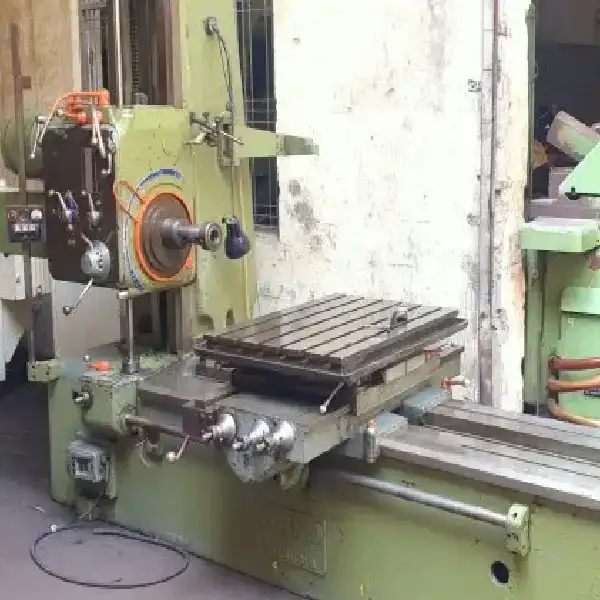

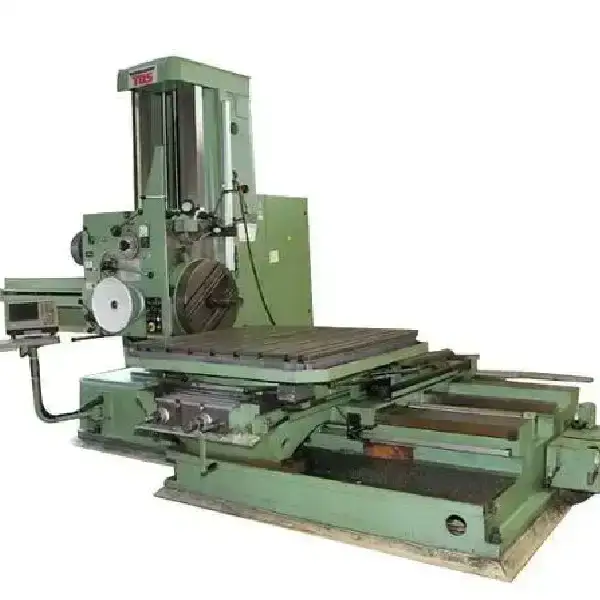

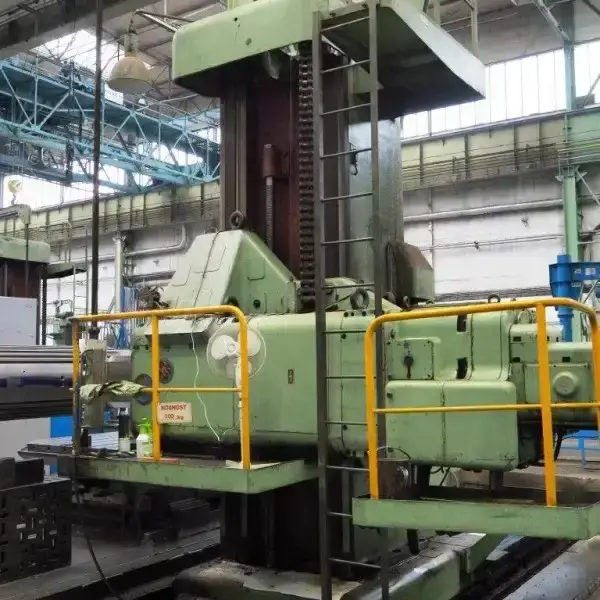

HORIZONTAL BORING MACHINE

Sl.No	Make	X Travel	Y Travel	Z Travel	Table Specification	System
1	COLLET	7,000 MM	2,700 MM	1,350 MM	LOAD 2500KG SIZE 2.3M X 2.3M TRAVEL 1150MM	SIEMENS
2	PLAUERT	2,800 MM	1,600 MM	1,150 MM	LOAD 15000KG SIZE 2.0M X 2.3M TRAVEL 1500MM	MANUAL
3	HMT	1,600 MM	1,200 MM	1,400 MM	LOAD 4000KG SIZE 1.2M X 1.2M	MANUAL
4	HMT	1,600 MM	1,200 MM	1,400 MM	LOAD 4000KG SIZE 1.2M X 1.2M	MANUAL
5	PAMA	12,800 MM	5,000 MM	1,100 MM	LOAD 60000KG SIZE 3M X 3M TRAVEL 1500MM	FANUC
6	PAMA	12,800 MM	4,000 MM	1,100 MM	LOAD 30000KG SIZE 2M X 2.5M TRAVEL 1500MM	FANUC

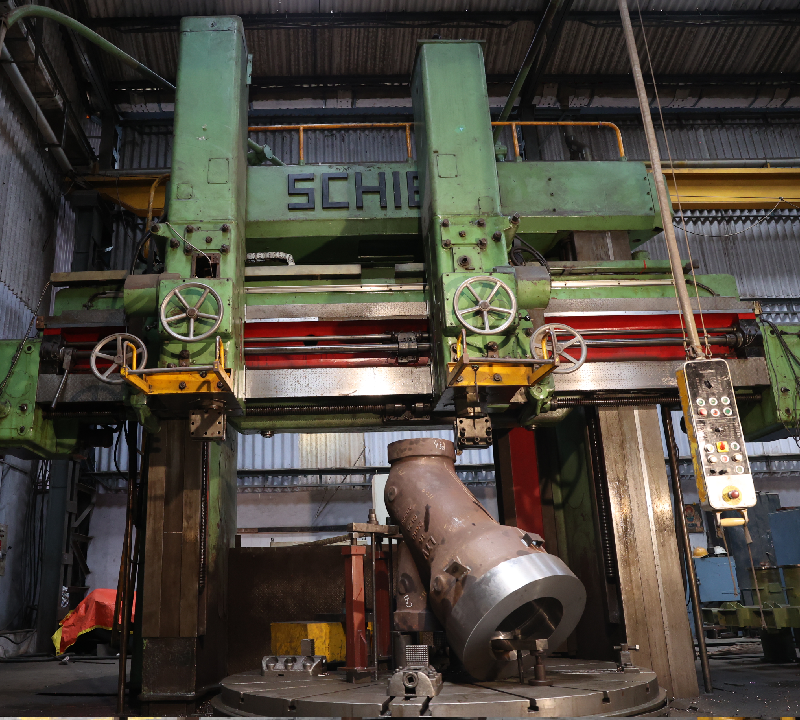

TURNING MACHINES

Sl.No	Make	Chuck Diameter	Swing Diameter	Working Height	Table Specification	Head	System
1	SCHIESS	2,500 MM	2,900 MM	1,760 MM	SPEED 50RPM LOAD 15000 KG	DOUBLE RAM	MANUAL

UNIT II

Our Facilites

Manufacturing Facility: Unit -II

Our Unit -2 is ISO 9001 : 2015 & ISO 3834-2:2005 Certified Organization which is Located in the Following Address
Address : No.F23, 8th Main Road, 2nd Cross Street, Sipcot Industrial Park, Irungattukottai, Sriperumpudur, Chennai 602105
Total area : 1 Acre
Established :2007
Covered Area for Machine Shop : 1,200 Sq. Mtr
Covered Area for Fabrication Shop : 1,200 Sq.mtr

Machinery

UNIT II

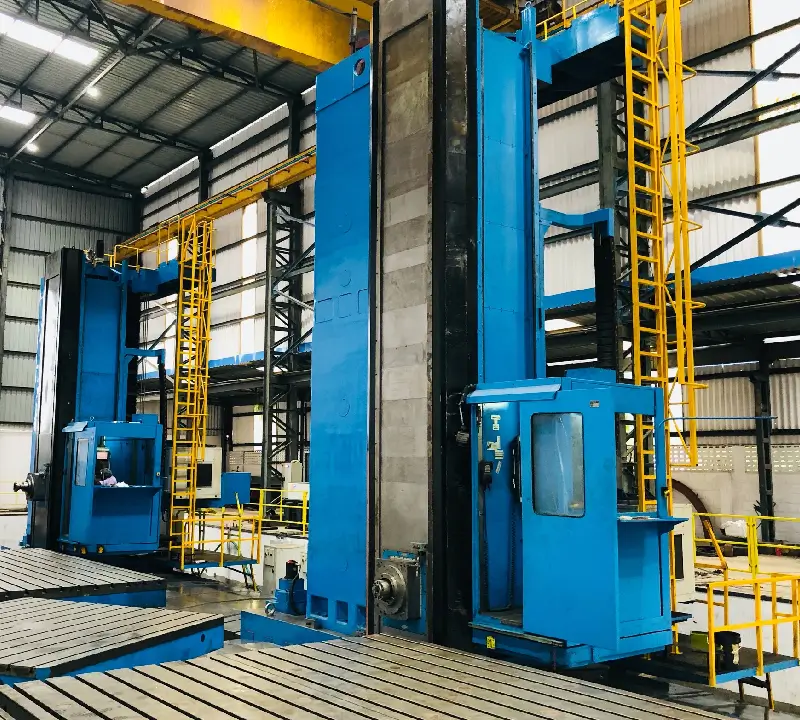

HORIZONTAL BORING MACHINE

Sl.No	Make	X Travel	Y Travel	Z Travel	Table Specification	System
1	LUCAS	7,300 MM	3,810 MM	1,420 MM	LOAD 30000KG SIZE 2.3M X 2.3M TRAVEL 1200MM	FANUC
2	COLLET	3,600 MM	2,400 MM	1,000 MM	LOAD 20000KG SIZE 2.0M X 2.3M TRAVEL 1300MM	FANUC
3	PAMA	12,800 MM	5,000 MM	1,100 MM	LOAD 60000KG SIZE 3MX3M TRAVEL 1500MM	FANUC
4	PAMA	12,800 MM	4,000 MM	1,100 MM	LOAD 30000KG SIZE 2MX2.5M TRAVEL 1500MM	FANUC

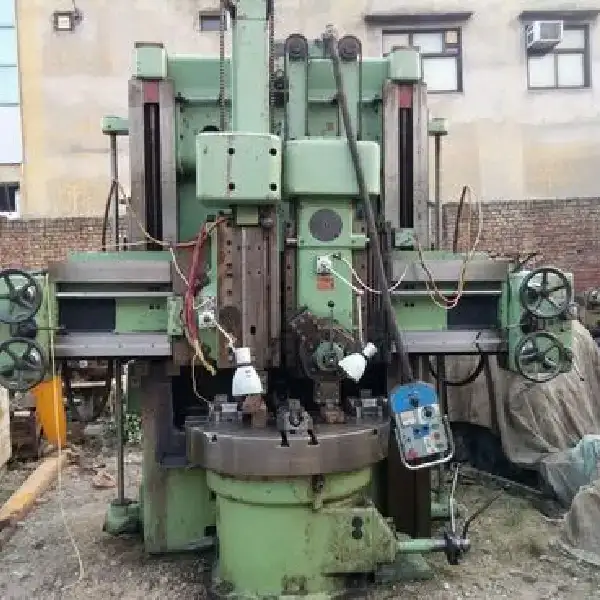

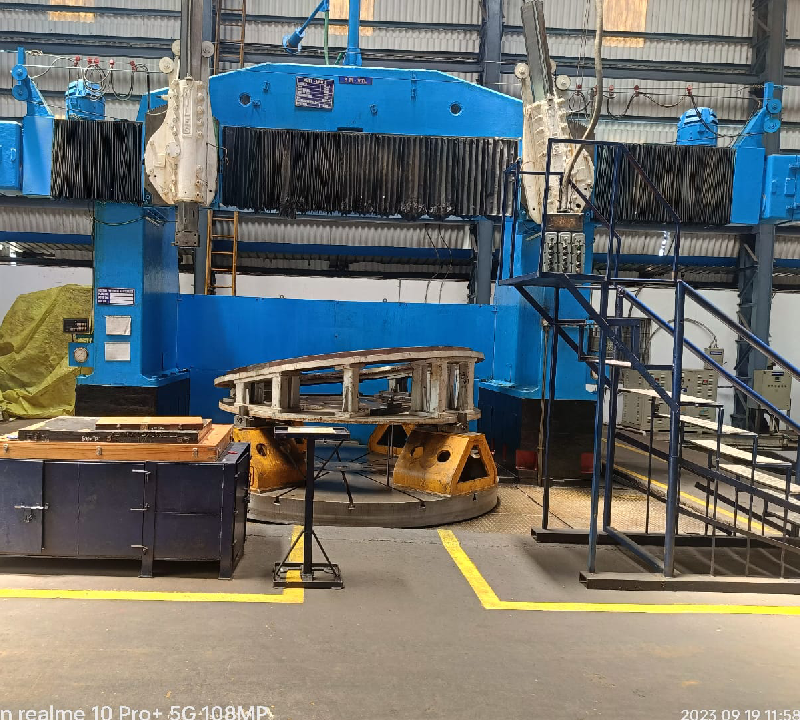

TURNING MACHINES

Sl.No	Make	Chuck Diameter	Swing Diameter	Working Height	Table Specification	Head	System
1	NILES	3,660 MM	5,000 MM	2,800 MM	SPEED 12RPM LOAD 20000 KG	DOUBLE RAM	MANUAL
2	TITAN	2,000 MM	2,200 MM	1,200 MM	SPEED 70RPM LOAD 10000 KG	RAM &TURRET	SIEMENS
3	SCHIESS	1,430 MM	1,750 MM	1,100 MM	SPEED 100RPM LOAD 4000 KG	TURRET	SIEMENS

UNIT III

Our Facilites

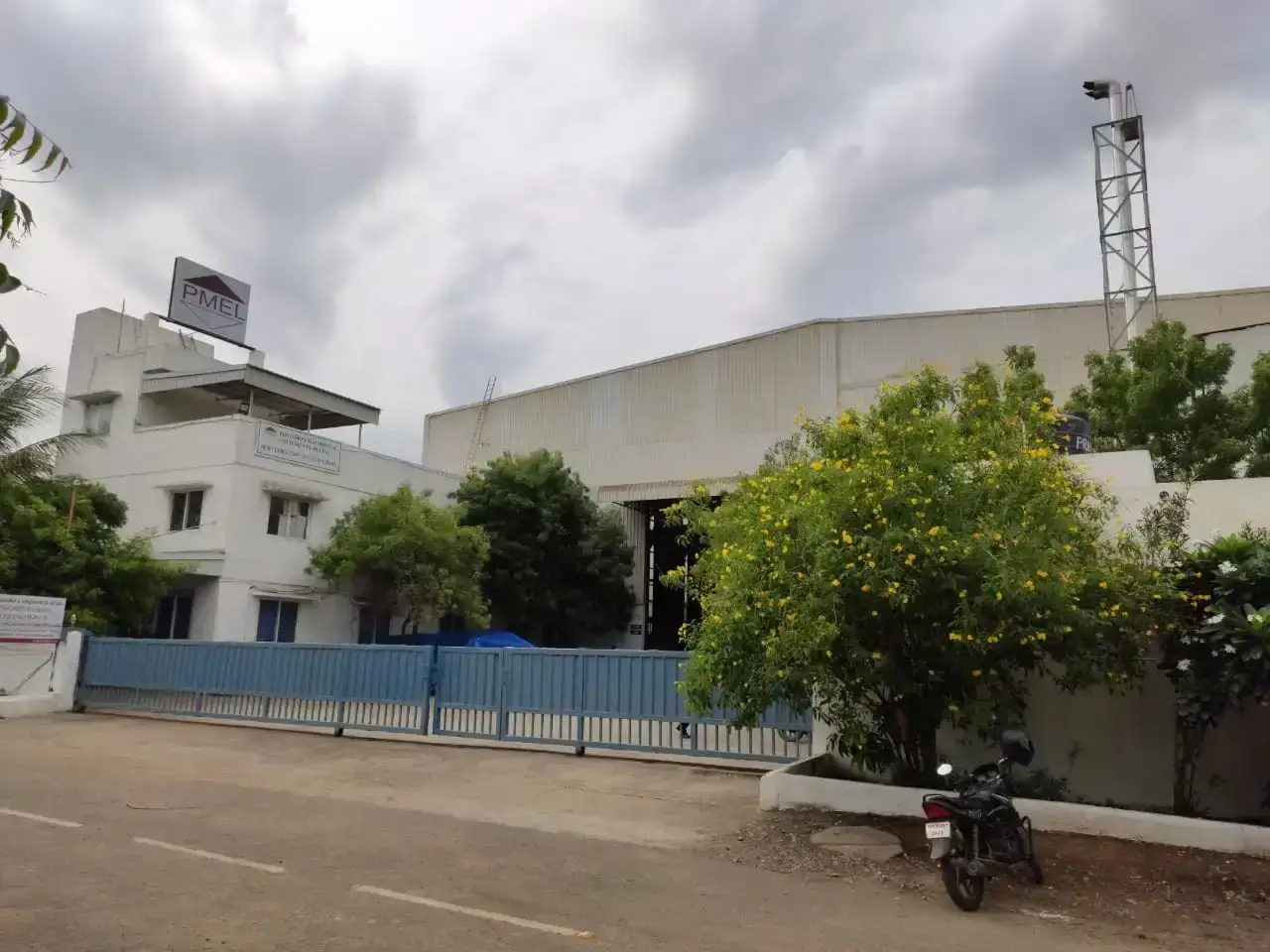

Manufacturing Facility: Unit -III

Our Unit - 3 is ISO 9001 : 2015 Certified Organization which is Located in the Following Address.
Address : No.A40(A),Sipcot Industrial Park, Oragadam,
Sriperumpudur, Chennai 602 105
Total area : 2.5 Acre
Established : 2011
Covered Area for Machine Shop : 1,452 Sq. Mtr

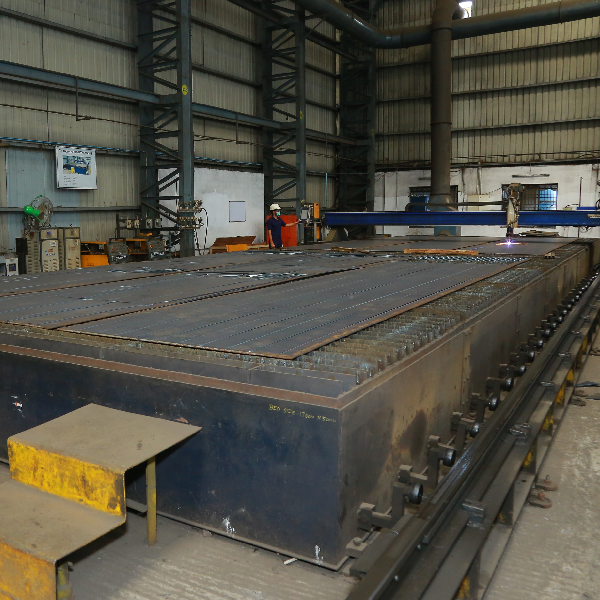

Covered Area for Fabrication Shop : 2,025 Sq.mtr

Machinery

UNIT III

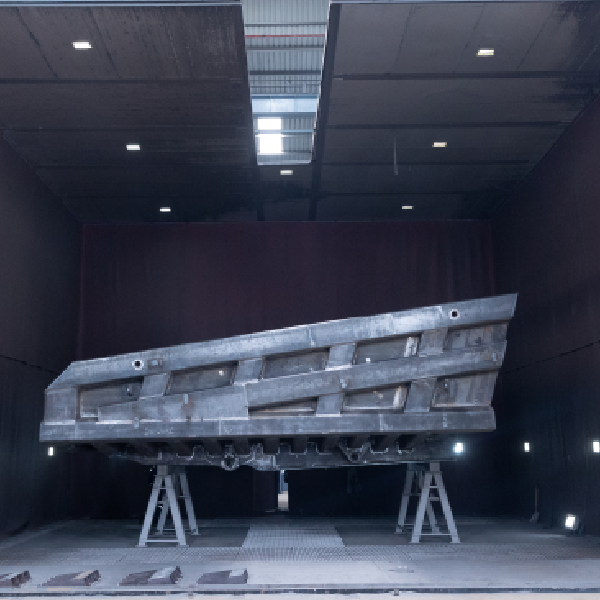

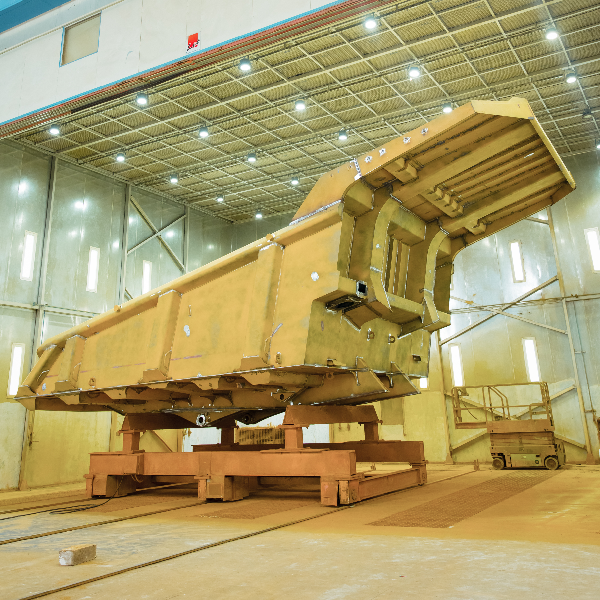

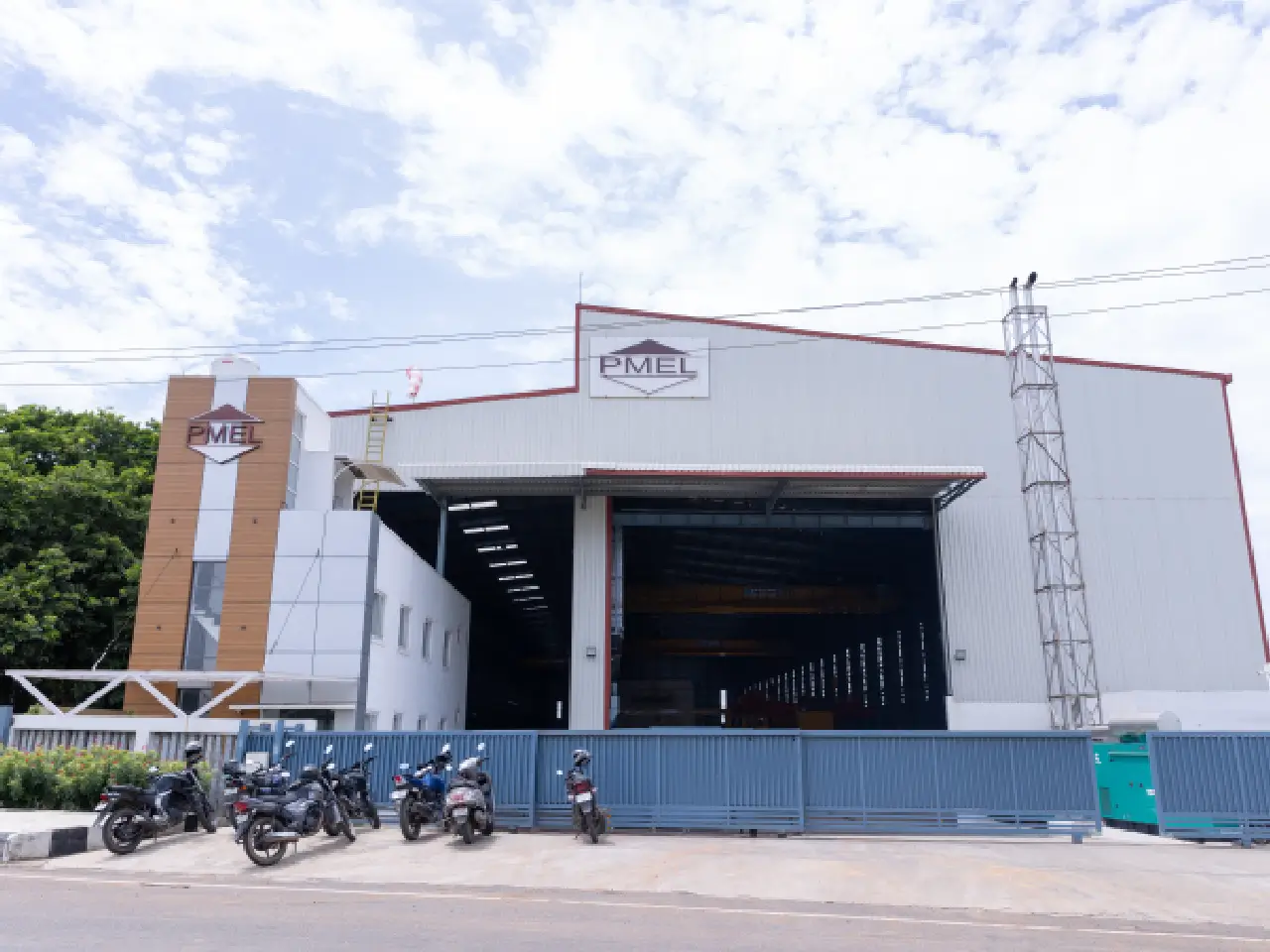

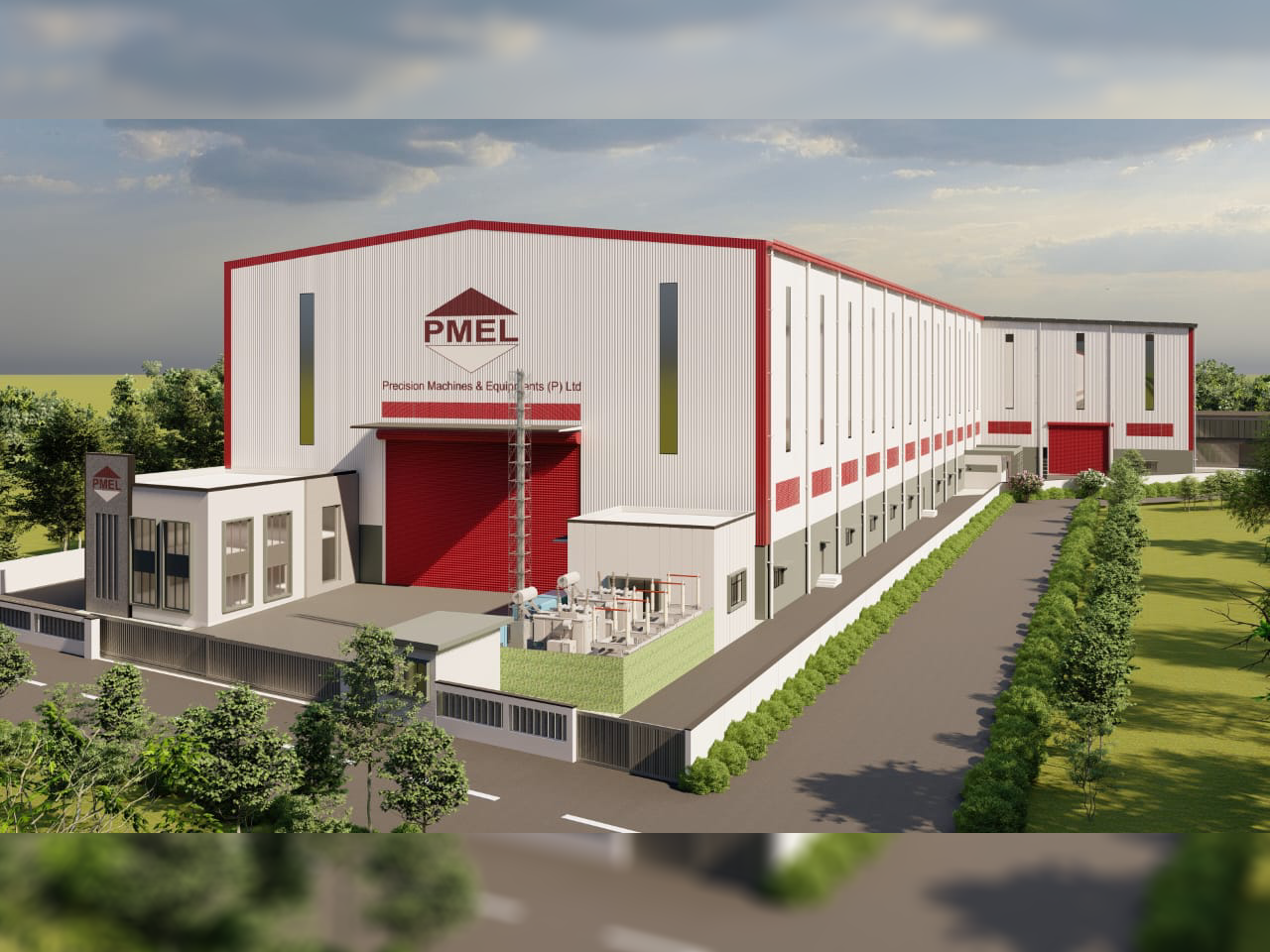

Manufacturing Facility: Unit -IV

Our Unit - 4 is ISO 9001 : 2015 Certified Organization which is Located in the Following Address.
Address : Pmel Oragadam Private Limited
Established : 2022
Total area : 2.5 Acre
